Technical Index for Elastomeric Foam Tubes
Field of Application: Insulation of Piping for heating, refrigeration & air conditioning, hot & cold water lines.
Operating Temperature: -40 °C to 125 °C
Nominal Pipe Size: ¼” to 3-1/2”
Nominal Wall Thickness: 9 mm, 20 mm, 25 mm
Tubing Unit Length: 1.83 m & 2 m

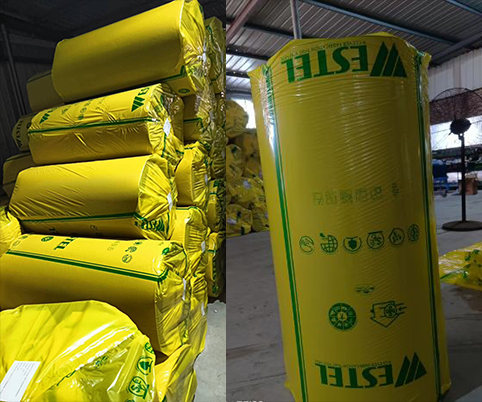

Technical Index for Elastomeric Foam Insulation Continuous Roll
Operating Temperature: -40 °C to 125 °C
Thicknesses: 6 mm to 32 mm
Dimensions: Width: 1 m Length: 5 m to 18 m (Dependent on the
Thickness)
Type: Adhesive & Non-Adhesive. Aluminum Faced Rolls are also available

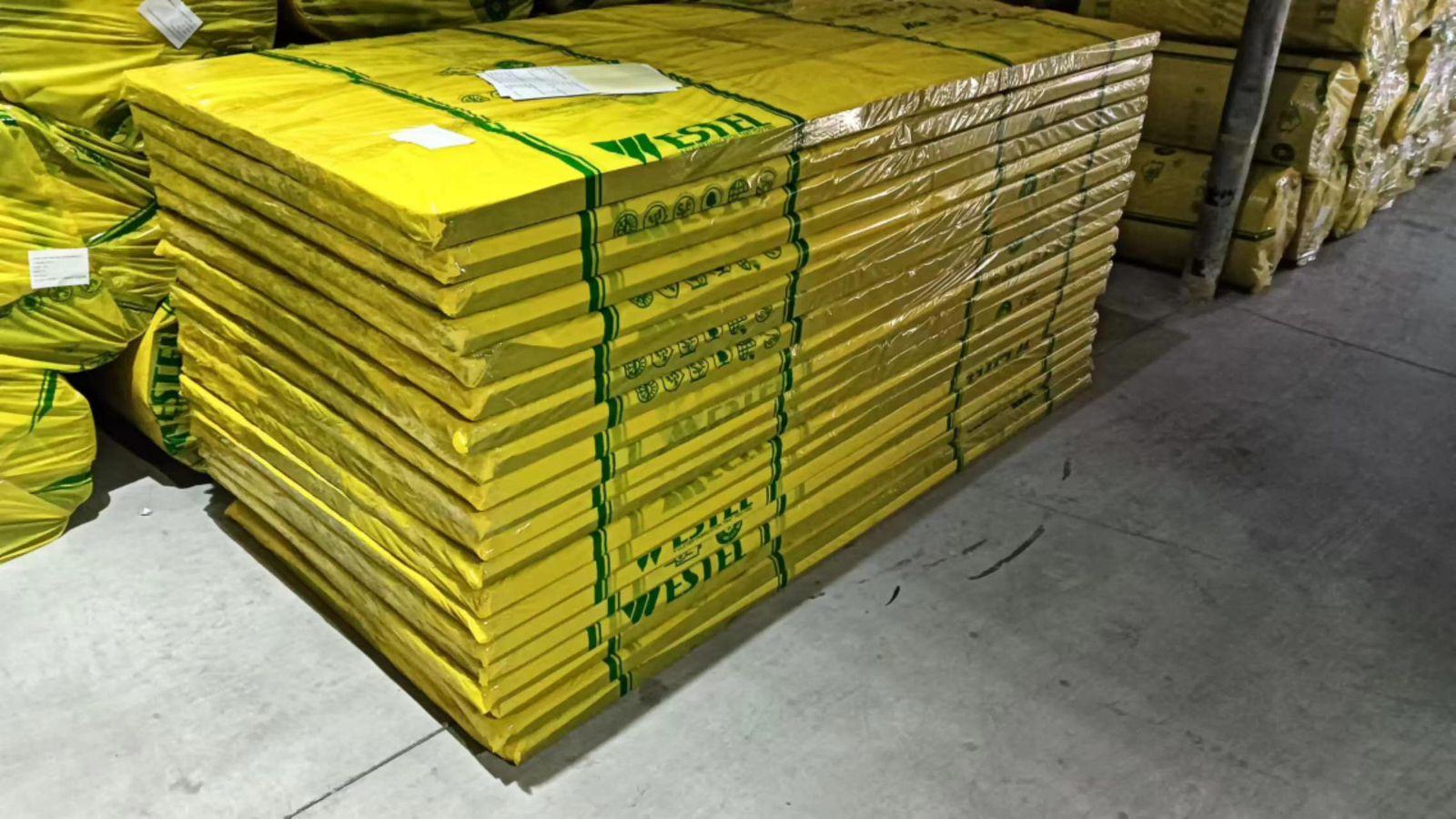

Technical Index for Elastomeric Foam Insulation Sheet:
Operating Temperature: -40 °C to 125 °C
Thicknesses: 3/8” to 1”
Dimensions: 4′ x 3’
Thickness: 3 mm
Width: 50 mm
Length: 10 m & 15 m
Technical Index for Self-Adhesive Elastomeric Insulating Tape:
Field of Application: Insulation of pipes located at difficult to reach position, Insulation of valves and T-joints, Noise reduction, vibration damping and damage protection.
Operating Temperature: -40 °C to 85 °C
Thermal Conductivity: 0.035W/ (m.k) at 0 °C
Water Vapor Permeability: μ > 3500
Thickness: 3 mm
Width: 50 mm
Length: 10 m & 15 m
